Tachometer เครื่องวัดความเร็วรอบ มิเตอร์วัดความเร็วรอบ แบบใช้แสง ราคาพิเศษ 2,000 บาท

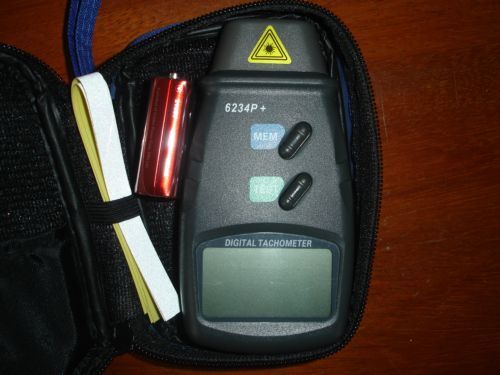

Tachometer เครื่องวัดความเร็วรอบ มิเตอร์วัดความเร็วรอบ แบบใช้แสง

(Digital Laser Photo Non-Contact Tachometer RPM Measure)

(Model: DM-6234P)

ราคาพิเศษ 2,000 บาท

สนใจติดต่อคุณนุ่น Tel. 087-5474219



KEY STRENGTHS:
DM-6234P is a high quality electronics tool that can measure the rotational speed (RPM) with its wide measuring range and high resolution. It is applicable for measuring: rotating speed of machine, motors, wheels, lathe for metal or wood cutting works and others.

DM-6234P provides exceptional features such as exclusive one-chip of microcomputer LSI circuit and crystal time base that offers high accuracy measurement & fast measuring time of the rotational speed of a shaft without even touching it, detecting distance of 50~500mm, lowest power consumption for longer battery life, sampling time of 0.8seconds, much bigger screen & 5-digit result, lightweight & compact. This is very interesting when making direct contact with the rotating shaft is not an option or will reduce the velocity of the shaft, giving faulty readings.


It is very simple to operate, just apply a reflective mark, which is included in the package, onto the target object, aim the laser beam at the mark and the RPM displays on its large LCD screen.

It has a CE marking at the back which certifies and assures that it comply with all the set essential health standards and safety requirements set out by the European Directives. You are ensure of your safety while using the DM-6234P.

Applications & Uses:
This speed sensing device can be used in automobiles, trucks, tractors, aircraft, trains, light rail vehicles, and automotive.

Experience the Efficiency of LED and Laser with just 1 instrument! Now, bigger LCD with annunciation, bigger 5-digit results, much more compact & light for a better and more comfortable reading of results.




Features: This device is very easy to use, effective and safe to use.


With CE Marking, conforms with European Standards
Large LCD screen with extra large 5-digit display
Wide measuring range and high resolution
Digital display gives exact RPM with no guessing or errors
With just fraction of minute Sampling Time (0.8 sec sampling time)
Automatic saving of Last value, Max. value and Min. value and can be displayed by turn anytime
Housed with durable, long lasting components, lightweight ABS-plastic that assures maintenance-free performance for many years
With High accuracy of ±0.05%
Uses Microcomputer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
Wide detecting distance
With Low Battery Notification
Carefully shaped to fit comfortably in either hand
100% Brand New

Specifications:

LCD Display : 5 digits, 18mm (0.7") LCD with Function Annunciation
Test Range : 2.5 to 99,999 RPM (r/min)
Resolution : 0.1 RPM (2.5 to 999.9 RPM) ; 1 RPM (over 1,000 RPM)
Accuracy : ± (0.05% + 1 digit)
Sampling Time : 0.8 sec. (over 60 RPM)
Test range selection : Automatic
Memory : Max. value, Min. value and Last value
Detecting Distance : 50 to 500 mm / 2 inch to 20 inch

Time Base : Quartz Crystal
Circuit : Exclusive one-chip of microcomputer LSI Circuit
Power Supply : 9V Battery (included)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Size : 131 x 70 x 29 mm
Item weight : 160 g (including batteries)
